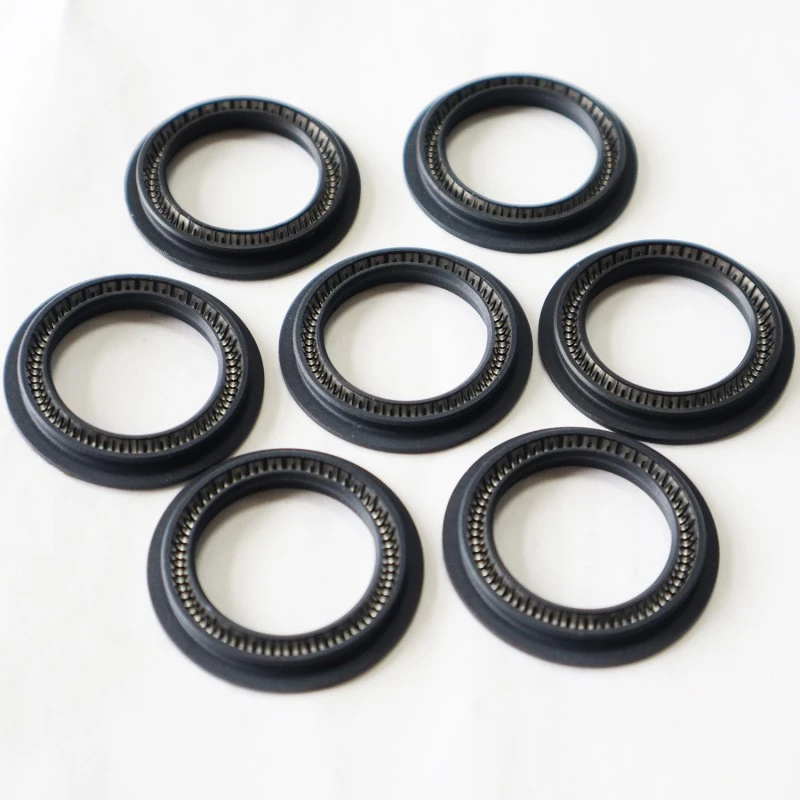

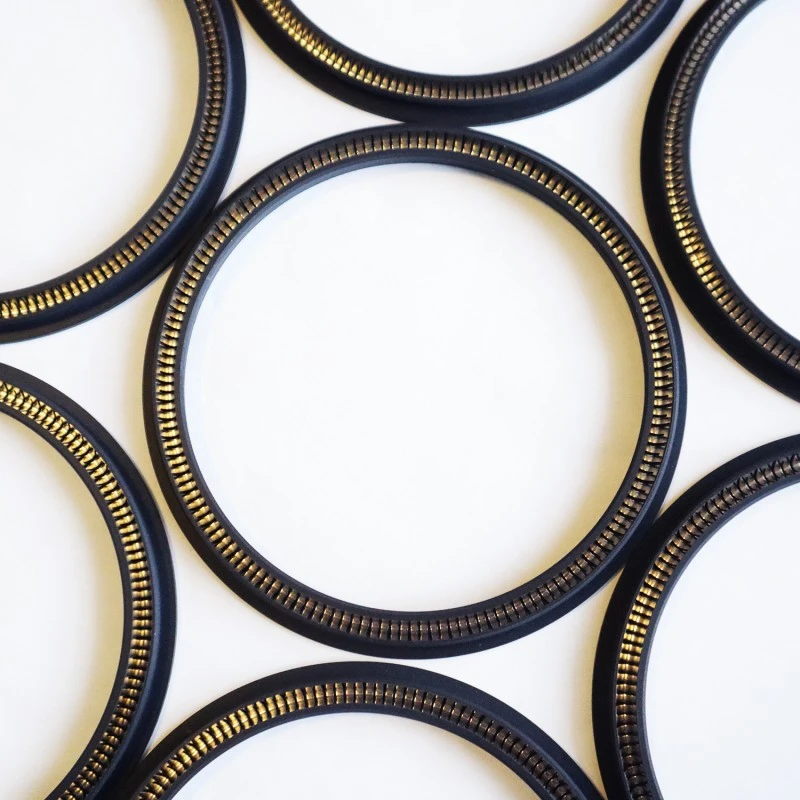

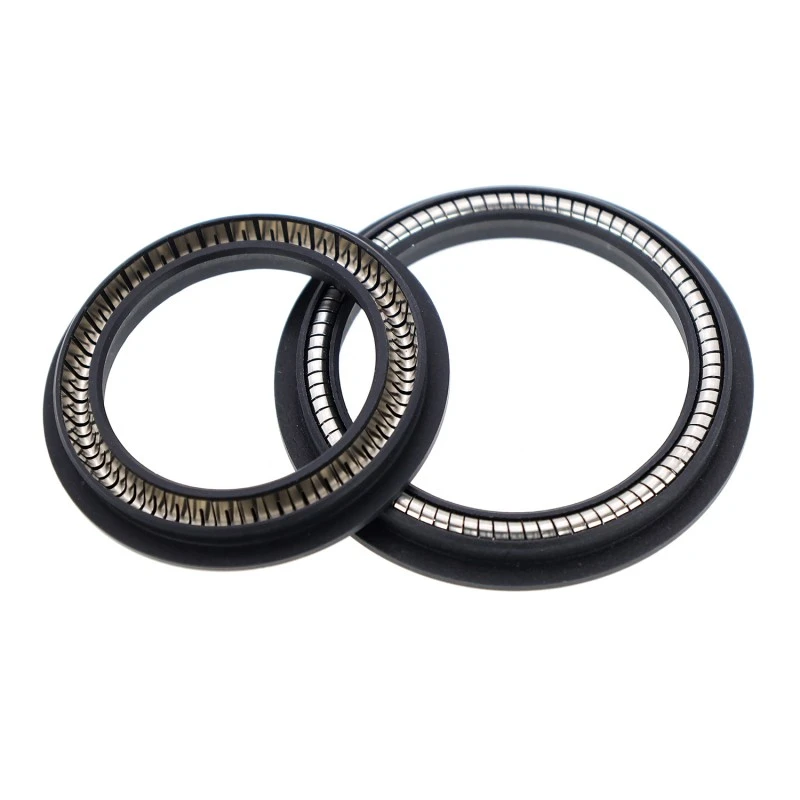

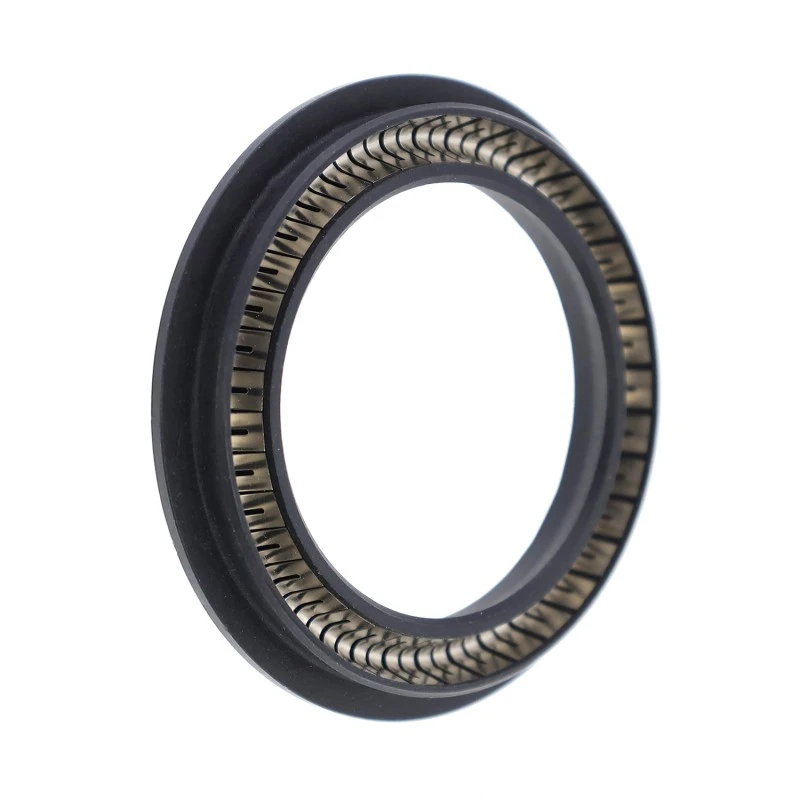

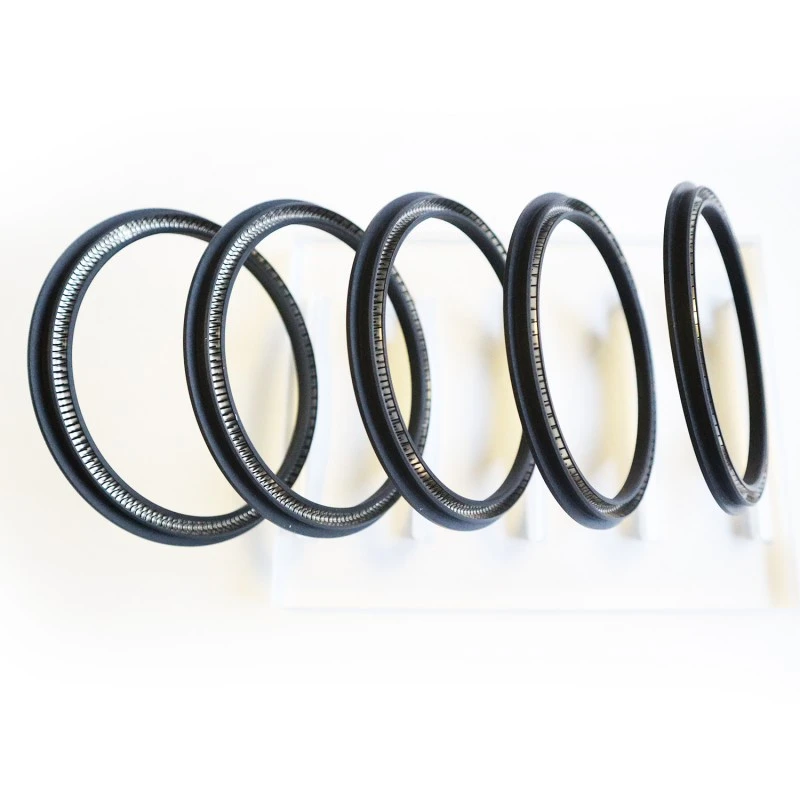

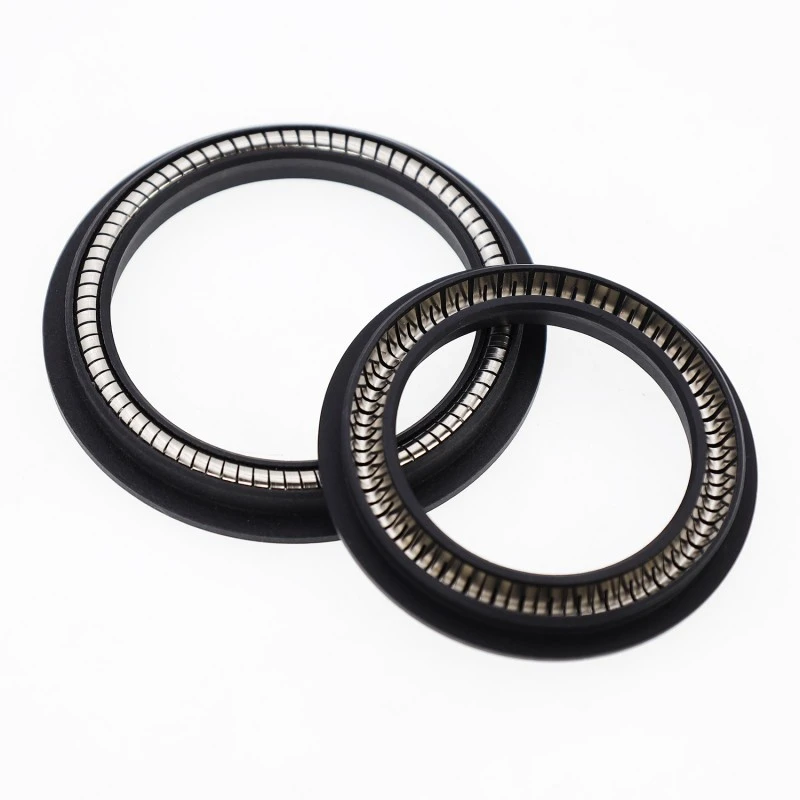

Is rónta brú ardfheidhmíochta, aontreocha iad na rónta fuinnmhithe earraigh le haghaidh seaftaí rothlacha a úsáidtear in iarratais seafta rothlacha. Is éard atá sa róin rothlach RC2055 earrach cruach dhosmálta agus plaisteach ardfheidhmíochta. Agus RC2055-B agus RC2055-C á n-úsáid, ní mór an t-ábhar elastomer cuí a roghnú go cúramach.
Coinníollacha oibriúcháin is infheidhme (níor cheart go dtarlódh luachanna foircneacha ag an am céanna)
|
Brú/MPa |
Teocht / °C |
Luas / m/s |
Meánach |
|||
|
≤35 |
RC2055 |
RC2055-B/C |
RC2055 |
RC2055-B |
RC2055-C |
Beagnach gach meán leachtach agus gásach |
|
-200~+250 |
-35~+250 |
<2M/S |
<6M/S |
<2M/S |
||
Roghnú Ábhar
1. Áirítear le hábhair O-fáinne atá ar fáil: R01 rubar nítríle (NBR), R02 Fluororubber (FKM), etc.
2. Ábhair fáinne róin: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Earrach cruach dhosmálta: earrach V-chruthach.
Rialú Próiseas Táirgthe
Tá bonn táirgeachta nua-aimseartha RuiChen feistithe le meaisíní múnlaithe insteallta ardchruinneas, meaisíní vulcanizing uathoibríoch i bhfolús, agus trealamh meaisínithe cruinneas CNC. Le linn an phróisis táirgthe, bainimid úsáid as modhanna SPC (Rialú Próiseas Staidrimh) chun monatóireacht a dhéanamh ar pharaiméadair phróisis thábhachtacha ar nós teocht, brú, agus am i bhfíor-am, ag cinntiú go léiríonn gach táirge múnlaithe comhsheasmhacht agus cobhsaíocht ard.
Maidir le táirgí ríthábhachtacha, cuirimid córas iniúchta 100% i bhfeidhm, seachas sampláil randamach, chun a chinntiú go bhfuil gach séala a sheachadtar dár gcustaiméirí cáilithe.
Sampla ordú
RC2055-40-PTFE4+V : Trastomhas seafta 40, ábhar fáinne séalaithe PTFE4, tá earrach cruach dhosmálta V-chruthach.
RC2055-B-40-PTFE4+R02 : Trastomhas seafta 40, ábhar fáinne ina saothraítear rónta PTFE4, is fluairorubber é O-ring.
RC2055-C-40-PTFE4+R02 : Trastomhas seafta 40, ábhar fáinne séalaithe PTFE4, tá fluororubber ag teacht le fáinne O.

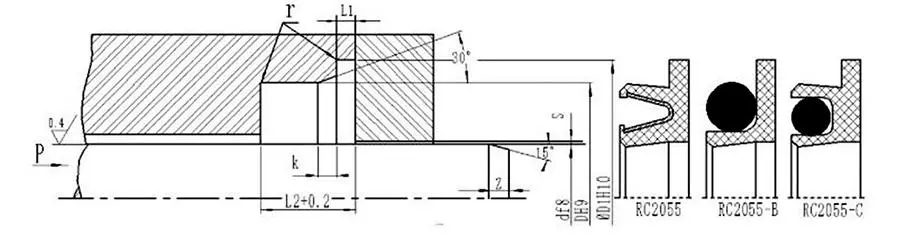

Tábla Sonraíochtaí (Tá gach sonraíochtaí laistigh den raon paraiméadar ar fáil)
|
Raon trastomhas slat d f8 |
Trastomhas groove DH9 |
Trastomhas groove D1H10 |
Doimhneacht imeall L1 |
Leithead an groove L |
Iompórtáil chamfer k |
Imréiteach gathach Smax |
Fad chamfer |
r max |
|
|
10MPA |
20MPA |
||||||||
|
5~19.9 |
d+5 |
d+9 |
0.85-0.1 |
3.6 |
0.3 |
0.15 |
0.1 |
Zmin=0.8L |
0.8 |
|
20~39.9 |
d+7 |
d+12.5 |
1.35-0.15 |
4.8 |
0.4 |
0.20 |
0.15 |
1.1 |
|
|
40~400.9 |
d+10.5 |
d+17.5 |
1.8-02 |
7.1 |
0.5 |
0.25 |
0.20 |
1.4 |
|
|
401~1500 |
d+14 |
d+22 |
2.8-02 |
9.5 |
0.5 |
0.30 |
0.25 |
1.6 |
|
Nóta: Moltar cruas dromchla an seafta rothlach a bheith HRC ≥ 58.
Tábla sonraíochtaí agus toisí (Baineann an tábla seo le RC2055-B agus RC2055-C, a bhfuil na sonraíochtaí céanna acu)
|
Múnla |
d |
D |
D1 |
L |
L1 |
|
Múnla |
d |
D |
D1 |
L |
L1 |
|
RC2055-5 |
5 |
10 |
14 |
3.6 |
0.85 |
RC2055-28 |
28 |
35 |
40.5 |
4.8 |
1.35 |
|
|
RC2055-6 |
6 |
11 |
15 |
3.6 |
0.85 |
RC2055-30 |
30 |
37 |
42.5 |
4.8 |
1.35 |
|
|
RC2055-8 |
8 |
13 |
17 |
3.6 |
0.85 |
RC2055-32 |
32 |
39 |
44.5 |
4.8 |
1.35 |
|
|
RC2055-10 |
10 |
15 |
19 |
3.6 |
0.85 |
RC2055-35 |
35 |
42 |
47.5 |
4.8 |
1.35 |
|
|
RC2055-12 |
12 |
17 |
21 |
3.6 |
0.85 |
RC2055-36 |
36 |
43 |
48.5 |
4.8 |
1.35 |
|
|
RC2055-15 |
15 |
20 |
24 |
3.6 |
0.85 |
RC2055-40 |
40 |
50.5 |
57.5 |
7.1 |
1.8 |
|
|
RC2055-18 |
18 |
23 |
27 |
3.6 |
0.85 |
RC2055-45 |
45 |
55.5 |
62.5 |
7.1 |
1.8 |
|
|
RC2055-20 |
20 |
27 |
32.5 |
4.8 |
1.35 |
RC2055-50 |
50 |
60.5 |
67.5 |
7.1 |
1.8 |
|
|
RC2055-22 |
22 |
29 |
34.5 |
4.8 |
1.35 |
RC2055-55 |
55 |
65.5 |
72.5 |
7.1 |
1.8 |
|
|
RC2055-25 |
25 |
32 |
37.5 |
4.8 |
1.35 |
RC2055-56 |
56 |
66.5 |
73.5 |
7.1 |
1.8 |
|
Múnla |
d |
D |
D1 |
L |
L1 |
|
Múnla |
d |
D |
D1 |
L |
L1 |
|
RC2055-60 |
60 |
70.5 |
77.5 |
7.1 |
1.8 |
RC2055-210 |
210 |
220.5 |
227.5 |
7.1 |
1.8 |
|
|
RC2055-63 |
63 |
73.5 |
80.5 |
7.1 |
1.8 |
RC2055-220 |
220 |
230.5 |
237.5 |
7.1 |
1.8 |
|
|
RC2055-65 |
65 |
75.5 |
82.5 |
7.1 |
1.8 |
RC2055-230 |
230 |
240.5 |
247.5 |
7.1 |
1.8 |
|
|
RC2055-70 |
70 |
80.5 |
87.5 |
7.1 |
1.8 |
RC2055-240 |
240 |
250.5 |
257.5 |
7.1 |
1.8 |
|
|
RC2055-80 |
80 |
90.5 |
97.5 |
7.1 |
1.8 |
RC2055-250 |
250 |
260.5 |
267.5 |
7.1 |
1.8 |
|
|
RC2055-90 |
90 |
100.5 |
107.5 |
7.1 |
1.8 |
RC2055-260 |
260 |
270.5 |
277.5 |
7.1 |
1.8 |
|
|
RC2055-100 |
100 |
110.5 |
117.5 |
7.1 |
1.8 |
RC2055-280 |
280 |
290.5 |
297.5 |
7.1 |
1.8 |
|
|
RC2055-110 |
110 |
120.5 |
127.5 |
7.1 |
1.8 |
RC2055-300 |
300 |
310.5 |
317.5 |
7.1 |
1.8 |
|
|
RC2055-115 |
115 |
125.5 |
132.5 |
7.1 |
1.8 |
RC2055-320 |
320 |
330.5 |
337.5 |
7.1 |
1.8 |
|
|
RC2055-120 |
120 |
130.5 |
137.5 |
7.1 |
1.8 |
RC2055-350 |
350 |
360.5 |
367.5 |
7.1 |
1.8 |
|
|
RC2055-125 |
125 |
135.5 |
142.5 |
7.1 |
1.8 |
RC2055-380 |
380 |
390.5 |
397.5 |
7.1 |
1.8 |
|
|
RC2055-130 |
130 |
140.5 |
147.5 |
7.1 |
1.8 |
RC2055-400 |
400 |
410.5 |
417.5 |
7.1 |
1.8 |
|
|
RC2055-140 |
140 |
150.5 |
157.5 |
7.1 |
1.8 |
RC2055-420 |
420 |
434 |
442 |
9.5 |
2.8 |
|
|
RC2055-150 |
150 |
160.5 |
167.5 |
7.1 |
1.8 |
RC2055-450 |
450 |
464 |
472 |
9.5 |
2.8 |
|
|
RC2055-160 |
160 |
170.5 |
177.5 |
7.1 |
1.8 |
RC2055-480 |
480 |
494 |
502 |
9.5 |
2.8 |
|
|
RC2055-170 |
170 |
180.5 |
187.5 |
7.1 |
1.8 |
RC2055-500 |
500 |
514 |
522 |
9.5 |
2.8 |
|
|
RC2055-180 |
180 |
190.5 |
197.5 |
7.1 |
1.8 |
RC2055-600 |
600 |
614 |
622 |
9.5 |
2.8 |
|
|
RC2055-190 |
190 |
200.5 |
207.5 |
7.1 |
1.8 |
RC2055-700 |
700 |
714 |
722 |
9.5 |
2.8 |
|
|
RC2055-200 |
200 |
210.5 |
217.5 |
7.1 |
1.8 |
RC2055-800 |
800 |
814 |
822 |
9.5 |
2.8 |
Nóta: Mura bhfuil na sonraíochtaí riachtanacha liostaithe sa tábla seo, téigh i dteagmháil lenár gcuideachta. Is féidir linn táirgí suas le 1600mm a sholáthar.
